Motori

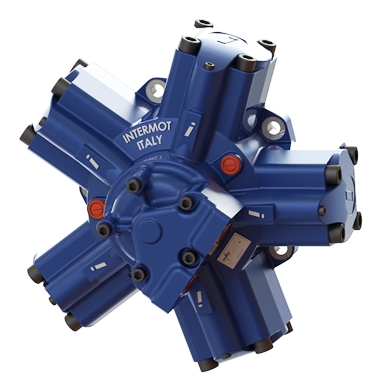

IAM•HD

IAM•HD Series has been developed during the last years, in order to satisfy particularly heavy applications, with difficult working conditions. The innovations applied on these motors enable to transfer 20% power more and longer lifetime.

Fixed Displacement

Item Displacement cm3/rev Specific torquenm/bar Peak power kw pdf dxf
IAM•HD H3 397 - 491 6.3 - 7.8 120
IAM•HD H5 1376 - 1815 21.9 - 28.9 200
IAM•HD H6 2126 - 3476 35.1 - 55.4 235
IAM•HD H7 3907 - 5384 62.2 - 85.7 258
IAM•HD H8 5966 - 8062 95 - 128.3 215
IAM•HD H4 714 - 992 11.4 - 15.8 150
